IMAGE ERASING PEN FOR SILVER MASTER PLATES

SILVER ERASING PEN

IMAGE ERASING PEN FOR SILVER MASTER PLATES
Order code No. Size Package
SR-01 Mini 12
SR-02 Tough 12
・"Silver Master Image Remover" is designed for correction of the shadows or halo which follows the spot correction of silver master plates.

How to use
・Lightly apply three or four times to the images to be corrected on the plate and treat with etching solution before deletion fluid dries.
・One application will suffice to correct faint lines or images.
・The liquid' s permeability is weak and does not affect the other images, so minute deletion is possible.
・Images of the corrected area are not actually erased, but the treated images will not be inked.

Correction during printing process
・Wipe ink off the area and then apply "Silver Master Image Remover" three or four times very lightly to the plate in such a way the application will not scratch the plate surface.
・Printing process can be resumed after treatment with etching solution to the corrected area.

Note
・For preservation of silver master plates after correction, the plates should be treated with etching solution.

Caution
・Do not press the penpoint hard against plate surfaces. If the deletion fluid is roughly applied, the master plate emulsion or the impression may be damaged.
・This pen contains industrial chemicals. Avoid skin contact. In case of skin contact, flush with plenty of water immediately.
・For prevention of dry-up, be sure to close the cap tightly after use.

DYNE PEN

Dyne pen(FILM WET DYNE PEN)

テンションチョーカー(FILM WET TENSION CHECK PEN)

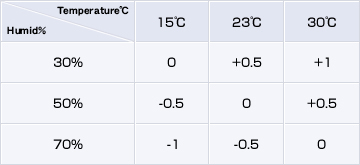

Tension Checker enables to read easily wetting and surface tension level (dyne,mN/m) of PE, PP, plastic films and the materials alike after corona treatment

Applying Method
・Do not touch or contaminate the surface to be treated.
・Apply vertical pressure (with light touch) and draw a line horizontally across the surface to be treated so that the solution lies evenly.
・If the applied solution does not break into droplets and/or occur shrinkage after 2 ~ 3 seconds, it indicates the surface tension of the film is properly treated; at dyne level of the solution.
・To achieve correct dyne level, repeat the following steps: If the solution does not break into droplets and/or occur shrinkage after 2 ~ 3 seconds, repeat the test with the next higher number of Tension Checker. If the solution breaks into droplets and/or occurs shrinkage after 2 ~ 3 seconds, repeat the test with the next lower number of Tension Checker.

Useable Sphere
Gravure printing, Offset printing、UV printing、Screen printing, Pad printing、Inkjet printer、Dry laminator、 Extrusion laminator、Inflation films, T-die film sheet, Oriented films、Coating, etc.

Applicable Materials
・Film: PS, PE, PP, PET, PI, PC, NY, CPP, OPP, etc.
・Conductive materials: Aluminum foil,Copper foil, Carbon film, Vapor deposition film
・Other materials: Glass, Ceramic, Plastic pressing, Non-woven fabric
Order code No. Dyne Level
TC-P
TC-B-30 30mN/m
TC-B-32 32mN/m
TC-B-34 34mN/m
TC-B-36 36mN/m
TC-B-38 38mN/m
TC-B-40 40mN/m
TC-B-42 42mN/m
TC-B-44 44mN/m
TC-B-46 46mN/m
TC-B-48 48mN/m
TC-B-50 50mN/m
TC-B-52 52mN/m
TC-B-54 54mN/m
TC-B-56 56mN/m
TC-B-58 58mN/m
TC-B-60 60mN/m
TC-B-70 70mN/m

Tension Checker P type

Enables to check the film surface whether corona treated or non-treated.
TENSION CHECKER P タイプ
Be sure to close cap after every use.
Avoid any skin contact. If contact occurs, wash immediately with plenty of clean water.
Tension Checker is designed for measuring surface tension level. Do not use for any other purposes.
Keep out of reach of children.
Avoid exposure to the direct light and store in a cool place.

EXTRA FINE OPAQUE PEN

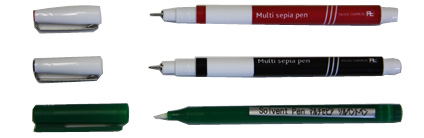

MULTI SEPIA PEN

MULTI SEPIA PEN
Order code No. Size Package
MS-005R 0.05mm 12
MS-005B
MS-01R 0.1mm 12
MS-01B
MS-03R 0.3mm 12
MS-03B
MS-05R 0.5mm 12
MS-05B
MS-BrR Brush 12
MS-BrB
MS-10R 1.0mm 12
MS-10B
MS-SV1 S
・Excellent opaquing pen is heat-resistant to approx. 80℃
・"Multi Sepia Pen" is designed for use on all type of negative and positive films. It has sufficient density and blocks the light transmission. Being quick drying, it will not stick on glass surfaces of vacuum frames or other films.
・It is about three times as durable as the conventional opaque pens.
・Liquid flows out smoothly and lines or images can be quickly drawn. It will not clog easily at the penpoint, which increases the workability.
・Images are not easily removed by conventional film cleaners. A special solvent pen for correction is also available.

Caution
・For prevention of dry-up, be sure to close the cap tightly after use.

OTHER PRODUCTS

ACID PROOF OPAQUE PEN

ACID PROOF OPAQUE PEN
Order code No. Size Package
AAO-01 0.1mm 12
AAO-03 0.3mm 12
・"Acid Proof Opaque Pen" can easily correct pin hole, short-circuit and marking on the printed circuit board which is also used for film as an opaquing pen.
・Being acid resistance, corrected part applied by "Acid Proof Opaque Pen" will not be etched.
・After dried, it does not stick on the surface of glass or other materials.

METAL WORKING

METAL WRITER HEAT RESISTANCE MARKING PEN

METAL WRITER HEAT RESISTANCE MARKING PEN
Order code No. Color Package
MW-BK Black 3
MW-BL Blue 3
MW-GN Green 3
METAL WRITER is a water/solvent proof twin-point marking pen and has the following features:

・Metal Writer enable you to write on metal, plastic, glass and paper
・The writings are water/solvent proof after being dried and will not be blurred with water.

How to use
・Uncap the pen and start writing. The ink will be dried in 20 seconds or so. ・To avoid running, do not touch the ink with wet hands or dip in water before it is dried.

Available colors: Black, Blue, Green
